The Hame 3G Wi-Fi Router is the next best thing to happen to my traveling escapades after purchasing my current Samsung Galaxy Note.
I love this pretty affordable device that has been a very big asset to me. To some, the name “Hame” as a brand could be so strange to them, well that was how it was with me at first.
The Review
Hame 3G Wi-Fi Router is a 3G Wireless Modem from a top Chinese Company,Hame Technologies.
Since the production in early 2012, there has been series of models, the most popular one being HAME MPR-A1.
The HAME MPR-A1 3G Wi-Fi Modem is 100% compatible with 3G, HSPA+, HSPA, CDMA 1X EVDO USB Modem, iPhone and android.
It is also compatible with all latest versions of Microsoft windows starting from Windows 2000, It can also run on Linux operating system.
The HM-A1 Wireless Router also has a built-in battery of 1800 mAh capacity which provides a continuous operating time of 3 to 6 hours.
You can charge the battery using a mini USB port or through a power adapter. It can also be used effectively as a power bank for charging mobile phones including ; iPhone, android and most Chinese phones.
Another awesome feature of this device is the ability to connect an iPhone to it for sharing your internet connection without having a 3G USB modem.
Features of HAME MPR-A1 3G Wi-Fi Router
The Hame MPR-A1 3G Wireless Modem can work as Mobile power bank for charging iPhone, android phones, tabs, iPad and other smart phones.
It comes with a built-in Ethernet port, which allows it to convert cable broadband to Wi-Fi. You can also use it to extend other Wi-Fi network instead of purchasing a different access point.
It is fully compatible with more than 420 kinds of 3G USB modems including Huawei, ZTE, Alcatel, Vodafone, D-Link, TCT, Epivalley and many other brands .
It also Supports the sharing of data plan via iPhone.
Features in Bullets
- Mobile Power Bank
With a Built-in 1800mAh Li-polymer battery the Hame MPR-A1 3G Wireless Router supports the charging of iPhone battery, Powers 3G hotspot for hours without direct power or USB connection.
You can easily find out how much battery power is left by pressing the battery indicator button.
- Mini AP, ADSL/DHCP Access Automatic Recognition
The Hame MPR-A1 3G Wireless Modem comes also with a Built-in Ethernet port that makes it very easy to convert LAN to WiFi.
It also lets more people surf the internet under the WiFi coverage area by serving as an access point used for extending WiFi connections.
- 3G Router, WiFi sharing
We have already outlined several 3G modem that’s fully compatible with Hame MPR-A1 3G Wireless Router.
It makes the making of WiFi connection seems so easy.
Need more features?
The video below will guide you in English Language and you can also ask us any question using the comment section.
Guide and Manual Setup Instruction For Non-Chinese Users
When I first purchased the Hame MPR-A1 3G Wireless Router, I was shocked to see only Chinese manual with no single English references in it.
I visited their website and found that one even harder than the guesswork I was doing all night trying to figure out a way to manually add my local APN settings to it.
This tips should guide you on basic settings needed to get all your Hame 3G Wi-Fi Modems working properly as a non-Chinese customer.
At the end of this section, you should be able to;
- Change the admin dashboard language from Chinese to English
- Change both your admin and Wi-Fi Password
- Create a unique name (SSID) for your Wi-Fi
- Change your APN and Mobile Network related options
- Setup Firewall and other dashboard related stuff
How to Change from Chinese to English Language
Maybe Hame didn’t expect their product to go as for as Africa, Europe and America without remembering there’s eBay, aliexpress and Dhgate.
Any way, that’s left for them to worry about. Now to Configure your Hame 3G Wireless Router to use English instead of Chinese when using the admin dashboard. Kindly follow the steps below;
- Turn on the Router by pressing the power-on button by the side

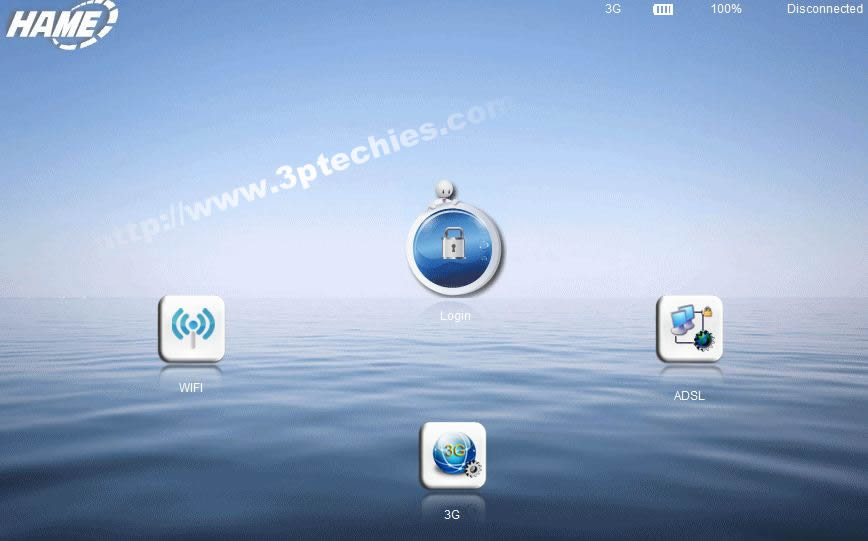

- Open your favorite web browser and enter http://192.168.169.1/goform/setSysLang?en
- Use hame or admin as the password depending on your device (mine was hame)
- If requesting for both username & password, combine both either ways (hame/hame or admin/admin)
Now to change Your admin and Wi-Fi Password
Continue from the dashboard by hovering over “admin” select “management” and change the settings under “Administrator Settings” to your own preferred variable. (default is hame/hame or admin/admin)

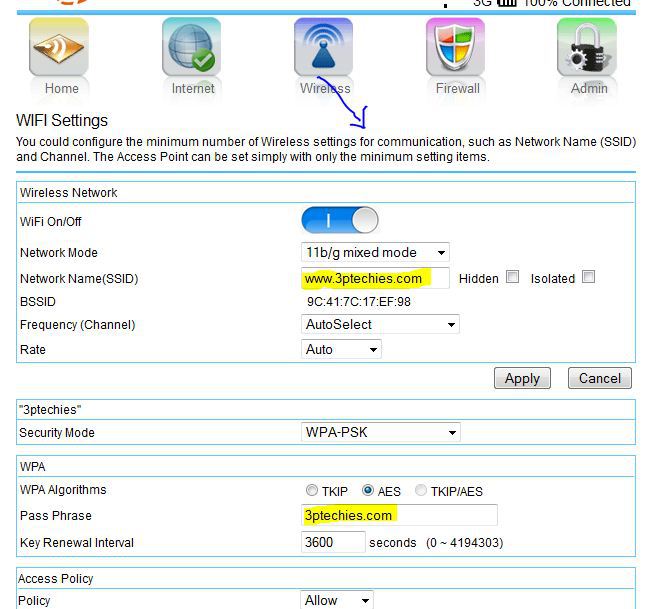

Changing Default Wi-Fi Password
This is very much like that of the admin details ==> Just hover over “Wireless” from the main menu and select “WIFI Settings” ==> Change Network Name (SSID) and Pass Phrase from there. Remember to select a security mode or leave it at the default option.
Creating a Manual APN Settings to Match your Mobile Internet Service Provider
Everything about Hame 3G Wi-Fi Router is automated from setup to connecting to the internet, but most mobile telecoms operators do not support automatic profiles and as such will need a manual APN configuration.

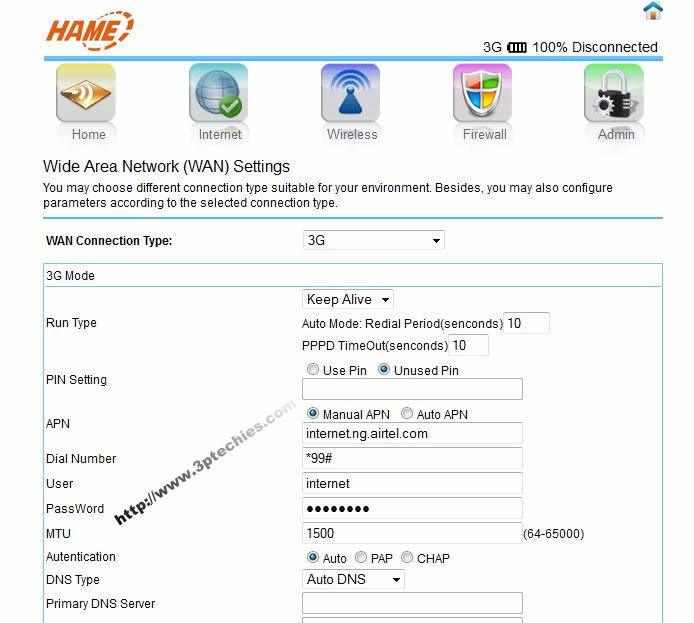

- Hover over “internet” from the main menu and select “WAN Network”
- Choose 3G as type and Check the Manual APN box
- Enter your Access Point Network details as required and hit “apply” button to save
APN Settings for all Network Providers in Nigeria
If you are using this modem in Nigeria or using any of the Nigeria telecom service providers, here are the various APN settings that should work for you.
Glo Nigeria
APN = gloflat
Dial Up Number = *99#
Username = flat
Password = flat
MTN Nigeria
APN = web.gprs.mtnnigeria.net
Dial Up Number = *99#
Username = web
Password = web
9Mobile Nigeria
APN = etisalat
Dial Up Number = *99#
Username = blank
Password = blank
Airtel Nigeria
APN = internet.ng.airtel.com
Dial Up Number = *99#
Username = internet
Password = internet
If you are outside Nigeria, Ghana, Kenya, South Africa, Germany, France, Mexico and Jamaica, you can visit here for a more comprehensive list of APN settings or get them from your network providers over the phone or from their various websites.
Other advance features that’s available in the Hame 3G Wi-Fi Modem admin interface can be tweaked following the above examples.
I have also uploaded the Hame 3G Wi-Fi Modem English Manual here for download.
Drop your challenges below, if there’s any.
After reset, I do not remember My Hame R1 wifi password (and I can not see the factory password on the body of my Hame R1). So I can’t do anything with my Hame R1. Please help me how to solve it. Thanks a lot.
@ Obasi Miracle
sorry brother for late reply
after many try i was able to reset my hame router and was working fine
but since yesterday it started again restarting so i think i need to flash its firmware now
can u help me getting updated firmware for this device HAME R1
Hame a19 router no sim card activete
how to use Ptcl usb wingle with this router
[email protected]
#777
Hi, i connect this Hame pocket router to my Office LAN , and my office internet connection require setting to Proxy,
Where can i find proxy setting for hame
Thank you and sorry for my English
You can do that from the advanced settings panel Eddy
got it.
Searched the MAC adress from the connected LAN port.
If read last 8 digits, but didn’t work. Then tryied and changed the last digit with an 8 and worked.
Bingo
I’m glad you were able to resolve this Sigi.
Do enjoy the rest of the week.
Sorry some typos.
I can ping the 192.168.169.1 but I can’t open them in any computer or browser.
I also tryed to reset, then it start with red light, but no other result
Marry Christmas,
I’ve got an older HAMA MPR-A1. But I do not have a WiFi password.
Is there any chance to get or change this.
I also can to open the 102.168.169.1 address, I think this would only work when I’m connected via WiFi.
I only see the SSID: HAMA_A1_eff9.
Any ideas are welcome
Sigi
hello. I just bumped in to your site looking for information about Hame pocket wifi router. I am using this for a couple of days now then yesterday i had a problem with it. there was no 3G connection light on the modem itself. not sure if its from the provider or if the modem had some problem. I dont really know how this pocket wifi works. hope you can give me some suggestions and advice. thanks
Are other services relying on data from same provider working properly?
what is default password after reset the device
hame/hame or admin/admin
is it possible port forwarding?
It’s always blinking both red and blue lights same time.
HI
I have hame a15
I’m using LAN CABLE TO WIN7 PC
Onday While switching from receiver to hotshot it’s getting late to change setting. So I disconnected from LAN
From that day
When ever I connected to PC through LAN
It’s not detected as Unidentified network.
And IP:192.168.169.1 not opening in any browser
I have done resetting also
When switching in pressed with a small pin into resetting hole.
Help me.
Remove the network/driver from the PC, reset the device, connect again and use the proxy address to configure it a-fresh
How to opgrade FIRMWARE ???
There’s a comprehensive guide for that online Kent, searching on Google with the keyword will point you to it.
I have Hame R1 model working for last 1 and 1/2 years. Now there is problem in router as power back up is almost nil from last few days. Now even online light is not glowing very mildly & internet connection could not been done through router.
Any solution . Battery of router gone ? if so , how to solve.
You can order a replacement battery from aliexpress, gearbest and/or any other eMall of choice Sks
Nice post. Very informative article. Its very helpful for me. Thanks for sharing
Very nice.
Hi. For the past 4-6 months its just working normally. but then tonight for unknown reason it just blinking and my modem is not detected. I’ve try restart and reset (inserting needle) several times but it also is not working. Please help me :(
I Have HAME Wireless 3G Router With Power Bank Model R1 But Unfortunately It Displays It’s Settings In Chinese. Please Guide Me How To Change Languge To English. Nor Can Use North I Can Serve Up!
Please Help!
Thank you for the review and english manual. It gives me a great help.
You are welcome Mamajin, I’m glad I was able to help.
hello,my hame mpr a1 just arrived and i dont know how to set it up because it came without a user manual . ive enterd the url from the device but it does not work could you help me with that ?
You’ll need to connect to the phone or pc before entering the address. The English manual is also attached to this post.
have HAME F1 and I am using it for wireless streaming. Now I can connect my computer to HAME through wifi but its web interface page on windows, android and Ipad shows media disconnected and I can’t see the Disk icon or Disk name in order to access files. All other functions are working fine.
I would appreciate any help
i forgot my Hame R1-2719 password, help me please
You can reset the password to factory default by inserting a pin to the tiny hole by the rear/side of the router
HI im using Hame R1 since yesterday and i can’t connect it with my 3g dongle( Huawei e3251). System win8…. Separetly they work fine (internet is working): dongle with computer and Hame R1 with lan cable. Both they just dont. I was trying changing auto to manual apn inserting correct values but it dont work. Lights just blinking. i reseted him 5 times and that didnt change thing. Official site is on Chinese and cant understand anything…Pls help.
To change the APN values manually, you’ll need visit the IP address provided above while connected via the Hame router and navigate through the settings/network tab.
Already did that, typed 192.168.169.1 and in 3g mode i typed apn,dial number,user name and password values of my operaton and clickem apply. It didnt work.
As in the settings refused to save after applying ’em? Was there any error message in particular and have you tried replicating same on either a mobile device or another PC? these are some random troubleshooting tips for getting such issues resolved
No errors dispayed, just limited connection for connection: HAME_A1_d55f , i tried another sim card (another operator, different apn,user,dial,pass) and also dont work. I typed 192…on my phone and i get same settings. Is my 3g compatible with R1?
Try this option when next you next the hame 3g router via the PC. Locate network settings from your PC and navigate to “change adapter options”. Locate the hame router (already connected) from the list and right click on it. Then click on the diagnose or troubleshoot option. Allow windows to detect and fix the issue automatically or suggest the fix for you.
I just did man…”troubleshooting has completed:
your DNS might be unavailable
this is mission imposible..
I’ll study this again and see how other way we could resolve it without re-flashing the custom firmware/software. If access to the retail dealer and/or support website were reachable, it wouldn’t be such a frenzied issue.
No error displayed at all. In network it is HAME_A1_d55f limited access. Is my 3g stick compatible with this router?
hi,
i am using last three months and i hv no problem but now i am not be able to browsing pls help.but its hame moderm is connected only not be able to browsing.
Looks like a minor issue caused by either a wrong APN value for the network in use or lack of a qualified data bundle plan.
You’ll need confirm that your data subscription is still valid from your internet services provider
Hi Thanks for reply I am using Lan ofiz cable for internet connection and data subscription is still valid .Before i am able to used this hame A2 router but from last 3 months I am not be able to used.Pls help .Router is connected but not be able for browsing.Wrong Apn how to change the Apn?coz i am not changed any setting?
Do you still need a help with this patale?
Sorry for the late response
can anyone help me in getting firmware update for hame-r1 router mine is getting restart .
plz help me in updating firmware .can give me the link or firmware om ny mail id
[email protected]
Connect ADSL modem to HAME router and setting wifi username and passcode
1. Connect ADSL modem to HAME router via LAN cable (RJ45)
2. turn on both devices
3. open browser, type “192.168.169.1” and press enter
4. login using username and pas : “hame” (lowercase)
5. click Internet -> WAN Network -> WAN Connection Type and choose SMART
6. Enjoy your connection
Setting Wifi username and password :
1. (after step above)
2. Open Wireless -> Wifi setting -> Change Network ID (SSID) whatever you want -> Security Mode, choose WPA2-PSK and in pass phrase column, fill your password whatever you want -> Click Apply
3. Reconnect your devices to wifi
4. Enjoy your securable wifi
Wow! thanks a bunch for the feedback Faizir,
Your instruction would definitely help others overcome similar challenges
Do have a lovely week ahead
Hello..
I have a problem.. i use my MPR-A1 as a Wifi-router-amplifier.. i want to change my hame modem wifi password but it always shown as “Wifi is connecting, cannot do this”.. and if that message was shown i try to disconnect this wifi and enter to the security menu again but those problem still happend..
Help me
If I understand you Faizir, your modem works correctly only that you want the password changed right?
now it works.. thanks
Hi,
I have HAME F1, but I confused how to reset this 3G wifi to set up default setting. Can you help me to resolve this problem…thank you
Hi Malino,
You can reset your 3G wireless router by gently inserting a pin at the little opening beside or at the rear panel of the modem
my hame router can connect with my pc successfully, but for my android device can’t detect the wifi-network. what’s wrong with my hame router? I’m very confused for resove this problem.
How many PCs have you connected to it already?
Hi, the defaulf password does not work, I guess something went wrong from the Chinese website. How can I recover the correct password?
Reset the device and use the default passwords in this post
I accidentally changed IP address of my Hame router from http://192.168.169.1 to http://192.168.170.1
Since that time I am unable to open the IP address. Is ther any way to reset it to original http://192.168.169.1
insert a pin or niddle in the tiny opening at the side of the router to reset it
Hi,
i forgot my Hame WIFI Password. Model Number is Hame_R1_0526. i sent for a repair to the seller and got back in working condition. but seller just stick password on modem itself. now it got erased and not able to connect, even i tried reset also. Please help me out of this
what message do you normally get when trying to connect?
Network key isn’t correct. please try again
Please help me out of this.
i can’t use my device yet.
Have you tried putting another call through to the seller?
What about the default security keys (hame or admin)?
Getting in touch with your seller or writing to hamedata support would be a good kick-start from this issue sir, else a firmware update would be the touch solution to it
hi…my hame modem’s wifi turns off whenever i restart the modem. Have been using it by resetting it with pin everytime…but now it seems, it has destroyed the internals…i can’t feel a button there anymore…any idea how do i get the wifi started again…can the settings of modem be accessed by directly connecting modem to pc using lan or something….plz help
Are you very comfortable with flashing of devices?
Sorry, I don’t get you
Such level of errors might need you to update the device’s firmware. Opening the chases (via a flat screwdriver) will also expose the reset button for you to get access to it directly
my router refused to reset the password, what should i do?
Did you try using the hole? I mean by inserting a pin or tiny stick in there
I have done it severally still no result
what else can be done?
Are you able to connect to the control interface on PC via the IP address?
No. I have tried but it doesn’t work
You’ll will need get in touch with the local support, retailer or get in touch with them via their official website.
I can’t lay my hands on any latest Hame wi-fi firmware (for flashing) which could have been an easier solution.
You can take a look at http://www.hamedata.com/html/server/download.html or http://www.hamedata.com/uploadfiles/download/201209070451555781.rar for firmware versions that can be used to flash Hame 3G Wi-fi (MPR-A1, A11W, MPR-L8 or any other version)
You can check http://www.hamedata.com/html/server/download.html or http://www.hamedata.com/uploadfiles/download/201209070451555781.rar for firmware versions that can be used to flash Hame 3G Wi-fi (MPR-A1, A11W, MPR-L8 or any other version)
Have you tried this method below? It worked for me some time ago.
Tap or Press the reset (marked as R) button with help of a broom or pin following this pattern ==>
–> Press the Reset button (R) with pin consecutively for 2 times. Then press alone and hold it for 5sec
–> Leave a small gap and press the reset button once more for 5 sec and then restart your HAME router
Check if you can get access to 192.168.169 after the restart.
Thanks a million. I will try just that
hi. my hame R1 doesnt dial 3g automatically, and i did setting APN manually, but doesnt start to connect internet, what i must to do ?
What happens when you log on to the settings window via your PC’s browser?
hi dear please tell me that hame router is work on unlocked cdma data card or not
I don’t think it is going to work on CDMA data sir, I have only tried the hame 3g router with regular GSM SIM
Hi i did the same bad thing and now i’m unable to connect router and get access.
what should i do now? any solution ?
please help.
have you tried resetting the device following the tips above?
connect with a LAN cable to a PC
change the IP of the PC to a static IP 192.168.169.2
Use 192.168.169.1 as Gateway
the network icon at the bottom right of the PC would show it is connected
then enter the IP of the router with 192.168.169.1 in the address bar of a browser
the Admin page would open then u can go to wiFi settings and put on the wiFi again
hi i bought Hame r1 and by mistake i turned off the wifi after logging
into the account. now i have trying hard to reset but it doesnt. what to
do?
Hi Preeti,
H ave you tried using a pin to insert in the small hole beside or at the bottom of the modem?
You might need run the config again on your browser once the modem is reset ted.
I am unable to connect Hame MPR-A1 with Tata photon 3G. can you pls help?
HI Kishor,
Can I get an idea of what problem or the error message you do normally get when trying to connect?
I do not get any message. The status shows as “Internet not connected”.
Am able to connect to WIFI from my PC. But, internet is not available since the router is unable to connect to the Photon 3G. It is a HSUPA MF190 USB Stick from Tata Photon.
I am not sure of the problem you’re currently having buddy. But as a test, can you try installing connectify (connectify.me) software on your computer with the USB modem connected to the PC instead and check if that allows your phone to browse the internet.
This will allow me give other advice from here, else you may need set correct APN values from your network provider.
Very good review. I landed on this blog trying to fix a problem on my HAME R1. Hope this helps someone http://amongthe.xyz/hame-r1-router-wifi-password/
Thanks for dropping by and leaving your awesome feedback. Do have a splendid day
Unable to access the IP address provided, the error message is “Internet Explorer cannot display page”. I tried connecting to LAN cable and I had it reset using a paper pin for the no. of times but still no internet connection.
Its yours a wi-fi modem?
and have you tried connecting via the wi-fi adapter on your pc using the troubleshooting option that came with Window to find out what the issue might be?
Let me hear your feedback concerning this two.
Thanks
Its Hame MPR A1 trying to connect it via LAN in my office that has internet connection but using as a WIFI in my iphone i cannot connect with the internet. I tried resetting it for a couple of times but still unable to access the internet. So i tried to trouble shoot it using the installation guide using the step 3 in the Computer settings which is to paste the IP address 192.168.169.1 but i cannot access this
Thanks for sharing valuable inputs .
I have Hame MPR A1 which was working well with Tata Indicom CdMA 3g stick but could not work with Vodafone ZTE stick. On check found that the perticular ZTE model is supported by Mpr.
Please tell me how to resolve the issue.
Please mail ur recommendations at [email protected]
Waiting. For reply .
Thanks.
What message do you get when connected with the Vodafone ZTE stick?
Hi, my device unable to establish a connection with my dongle. hope you are able to advice thanks.
What message do you get and have you tried resetting the device?
btw have you connected this device successfully prior to this time?
What firmware are you running?
Hai, I’m facing problem to login for setting. Is there anyone can help me, I have tried to login for this 2 days but still can’t login
What message do you get on visiting http://192.168.169.1/goform/setSysLang?en ?
still cannot login….why…oops google chrome could not connect to 192.168.169.1
Try firefox or reset your modem using the small hole at the bottom or side
Dear All, I’m facing problem to login for the setting. Can anyone help me to setting this device
I am not able to connect MPR-A1 3G Wi-Fi Router after setting up the password. I am getting error : Authentication error occurred” in my mobile/Laptop while connecting. I need help to reset the router to factory settings or if I can get over this error. Thank you so much in advance.
Hi Peeyush,
resetting your modem is quite easy, all you need do is ==> locate the tiny “hole” by the side or back of your 3g modem.
Gently insert a needle or pin inside to reset to factory default, let me know if you still need help with this
thanks
Hi,
I have disabled the wifi button off in wireless section to connect back how to open the setup page. im unable to find the fix please advice
Opening the setup page is quite easy…….. Type http://192.168.169.1 in your address bar and log in to access the setup options…… let me know if there are other issues ASAP
Hi I am trying to access the address as specified but the wifi is off in settings page from then im unable to communicate with hame router.
Is your Hame device turned on? is your pc wi-fi driver properly installed? if both is positive a pc restart may be necessary……. let me know if you need other troubleshooting options
Thank you Miracle,
I know and sorry, may be you are not the person I should ask technical things. I Really appreciate your prompt response to my comments and
helping me.
Also guessing you might have faced issue what I’m getting.
I Google and found to reset the device. I did about 8 times then it got restored and able to reset WiFi password.
But having the same issue “HAME router is not accepting more then 1 device the reason why i turned WiFi button off.”
Is there any why to make HAME to accept more then one device to connect. I have two android and one Symbian mobile and PC.
I am successfully able to connect to PC and one android (2.3.5) mobile, another android(2.3.5) and Symbian devices are not able to find WiFi, if found not been connecting.
Sorry for a long story. if interest please respond or delete the comment u have rights to do..
cheers.. :)
Hi Vinod,
I understand how frustrated you are with my not providing a satisfactory answer in my previous reply to your challenges..
Trust me, I didn’t mean to do so and that doesn’t mean I’m new to tech gadgets and how to troubleshoot them …..
Your question
suggested your pc isn’t able to communicate with your 3g router, that was what actually prompted me to advice you check your driver and other wireless related tips.
Concerning your new challenge; I will advice you log on to http://192.168.169.1 from your favorite browser and ==> change the SSID and “security mode” ==> toggling from “dynamic” frequency to a specific (static) one can also aid your troubleshooting.
One you switch to something new, save and check if that works in positive direction..
Normally, up to 20 devices can connect and use your 3g router simultaneously ..
I haven’t personally faced this problem myself, hence, my reason for providing only tips and idea …..
More…….
1. Can you provide further details like what error message you normally get when trying to add a new device?
2. Have you tried using the WPA-open ( Wi-Fi Adhoc, open) without success?
My first question to you was the After turning off the Hame router WiFi in settings page. But that doesn’t addressed the issue so i found a reset option which resolves the issue but except other mobile device I am able to connect hame router to another rmobile and PC.
I will try u solution..
Have you tried contacting their support @ http://hamedata.com/ or any of their retail store?
Yes, I did found at Hame site FAQ section to reset device to restore the WiFi settings. The retail store where i brought no one get faced to it nor they know how to resolve.
hello there
I stupidly did the same thing and clicked wifi off :(
How did you reset to restore wifi settings
thanks
jamie
Hi,
I am not able to connect the HAME router to PC/mobile.. its not transmitting the wifi signal. the blue indicator bulb is dim (not bright). please help me
[email protected]
have you tried resetting the device?
Yes , I have reset it , still its not transmitting the wifi signal. my laptop/mobile is not detecting the signal(i have checked mobile/laptop wifi setting).
the blue light is blowing in dim (low brightness) .
Repeat the reset untill see the red blink goes and blue blink start’s and do make the device full charge don’t leave it connected to charge even its full charged.
any idea?
locate the tiny hole and gently insert a pin to reset
Hi, I did reset no of times then it got reset and get proper working now. from few days the device is getting reset by itself. I dont know what is the reason.
Hi did u managed to get ur wifi issue resolved & if yes how
Hi Vikas, I did reset with papaer pin hold for 10 seconds untill the red indicator start blink remove the pin and see the blue blink indication continuously then connect with ip and do settings of your data card.
Mine is Reliance data card #777, user namme and Pwd data card number and works great.
In WiFi settings WPA section TKIP/AES for non-android or other devices to connect
Now it rocks.. no issues till now
since you diabled wifi you cannot login wirelessly. plug in your LAN cable to both PC and router and enter address mentioned above. then login to the dashborad page as usual and turn wifi back on .
3G Wi-Fi Router
hi i cant connected to internet using http://192.168.169.1 . when try it always show internet connection not avaliable. pls help
[email protected]
tq
You’ll need to connect your router to the computer before visiting that address to complete the setup friend
