A lot of people get confused about solar inverters, especially when it comes to understanding the difference between the two common types: Hybrid and Pure Sine Wave. If you’re going to buy an inverter for the first time, it is important that you know the clear difference between the different types in the market.
A quick one, a hybrid inverter is a type of solar inverter that can connect to multiple power sources, which includes traditional sources like grid and solar panels, and renewable sources like batteries without the need for a separate charge controller. This is because an MPPT charge controller is built into them. On the other hand, a transformer (non-hybrid) inverter needs a charge controller (either PWM or MPPT) to work correctly.
Pure sine wave inverters are a good solution to convert DC to AC power and have a good power backup plan for your home and offices.
The 5 Best 5KVA Hybrid Inverters to Buy in Nigeria
Come along with me as I walk you through the best 5KVA hybrid solar inverters to buy in Nigeria now. These hybrid inverters are equipped with a 5KVA transformer and can handle loads over 4000W capacity, which is enough to power a standard home with TVs, bulbs, fans, inverter ACs (maximum of 2), home theater, and other small appliances.
1. Zinox iPower 5kVA/48V (₦581,530)
The iPower Plus hybrid inverter system sold by Konga’s Zinox brand is inarguably one of the best options in the market. This particular 5KVA model has a 10000VA surge power with a maximum Photovoltaic Array (PV Array) power rated at 4000W. It also supports MPPT (Maximum PowerPoint Tracking) and a maximum charge current of 140A.
Zinox iPower 5kVA hybrid inverter is equally portable and quite easy to install inside the house or the seat out area. With 4000W power output, this inverter can power your entire home efficiently, and when paired with strong DC batteries, you can be sure of almost 24-hour steady light.
Features and Specs:
- Digital screen and intuitive control buttons
- 5KVA/5000W rated power
- Hybrid inverter technology
- 10000VA surge power
- 230VAC±5% input voltage
- 4000W maximum PV array power
- 50Hz/60Hz frequency range (auto-sensing)
- MPPT solar charger type
- 145 VDC open circuit voltage
- 140A maximum charge current

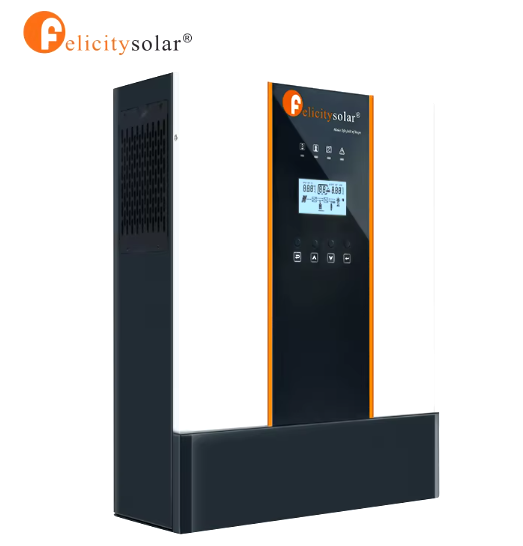

2. Felicity 5KVA/48V Hybrid Inverter (₦562,000)
Another top choice here is the Felicity 5KVA hybrid inverter, which can work with high-power solar panels up to 500V. The Felicity hybrid inverter comes with a 600W/100A built-in MPPT charger controller and can automatically switch between power sources (for example, switching from grid to solar panels).
This powerful hybrid inverter can be used with various battery types, including lithium-ion batteries. It comes with overload, over-temperature, and short-circuit protection. The design is sleek and compact, which makes it fit for indoor or outdoor installation. An interesting part of this inverter is its ability to receive power from the solar panels alone without connecting the batteries, which is referred to as the Cold Start function.
Features and Specs:
- 100A in-built MPPT charge controller
- Configurable input voltage range via a digital control unit, using the intuitive buttons
- Configurable AC/solar charger priority
- It can work with various battery types
- It can receive power directly from the panels without using a battery charge
- Supports up to 500V solar panels

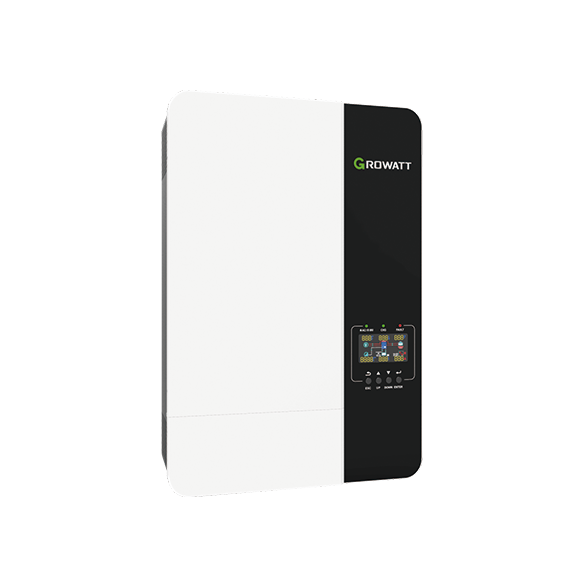

3. Growatt 5KVA Hybrid Inverter (₦610,000)
The Growatt 5kVA 48V hybrid inverter comes with a remote monitoring function and an integrated MPPT charge controller – it can also work without batteries by receiving power directly from the solar panels. This hybrid inverter has an extended PV array rated at 6000W and an input voltage of 450VDC.
Growatt is a name to reckon with when it comes to delivering quality products, and this inverter is solid-built to last over a long time. Rated IP20 in IP rating, you can install this inverter outdoors and won’t have a problem.
Features and Specs:
- Mobile app support for remote monitoring
- Compatible with different battery types
- Rated power 5000VA/5000W
- 6 units maximum parallel capacity
- AC voltage regulation in Battery Mode: 230VAC ± 5% @ 50/60Hz
- 10000VA surge power
- Pure sine wave technology
- 20ms maximum transfer time
- Capable to handle up to 6000W PV array power
- MPPT range at Operating Voltage: 120VDC ~ 430VDC
- 450VDC maximum Open Circuit Voltage
- 100A MPPT charge controller
- Frequency range of 50Hz/60Hz (auto-sensing)

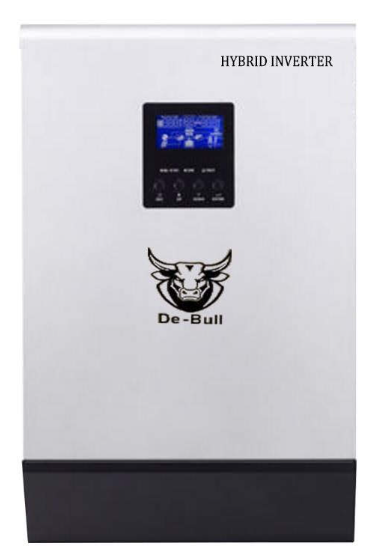

4. De-Bull 5kva Hybrid Inverter (₦580,000)
De-Bull isn’t one popular name to reckon with in the market, but they’ve got a strong 5KVA hybrid inverter you can go for – if you need a reliable inverter system for your home. The De-Bull 5KVA inverter comes with a built-in 60A MPPT charge controller and requires a minimum of four batteries to be powered on. Well, it’s not heavily-specced like the others mentioned above, but then, it’s a good one for the price and it can be connected in parallel up to 30KVA.
Features and Specs:
- Requires at least 4 x 200ah batteries to power
- 60A MPPT charge controller
- AC input voltage at 100 – 220V
- DC battery voltage at 48V – 54V
- PV max voltage: 145Voc
- AC output voltage: 230V

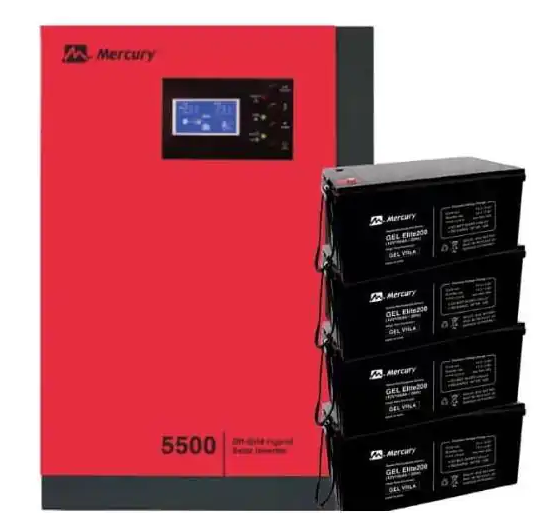

5. Mercury 5KVA Hybrid Solar Inverter (₦680,000)
Mercury inverters are remarkably strong and reliable. Also, they are feature-packed and guarantee stability with power distribution. The Mercury 5kVA hybrid inverter is one of the best the market has to offer right now, however, it’s quite, very expensive. This inverter can charge from the grid or standby generator to ensure steady power supply; it has a built-in MPPT charge controller.
Operating at 48V voltage and delivering steady 220V output using pure sine wave technology, this hybrid inverter can power the standard electrical appliances in any home. It features an LCD display where you can adjust the power settings and enable most regulatory features of the system; the display is also for monitoring the system’s status and performance in real time.
Features and Specs:
- Configurable input voltage range and battery charging current via the intuitive display console.
- Configurable AC/solar charger priority
- Can be powered by the grid or a generator
- Cold start function
- Overload/ Over temperature & Short circuit protection
- 80A MPPT charge controller
- 5000W max PV array power
- 240VDC nominal PV voltage
What More?
These 5kVA hybrid inverters from reputable brands are the very best options in the market, and it’s best to make your choice from here. A 5kVA hybrid inverter can power your entire home, but if you have many heavy appliances like non-inverter ACs, deep freezers, and ovens, then you may need a higher-capacity inverter system.
